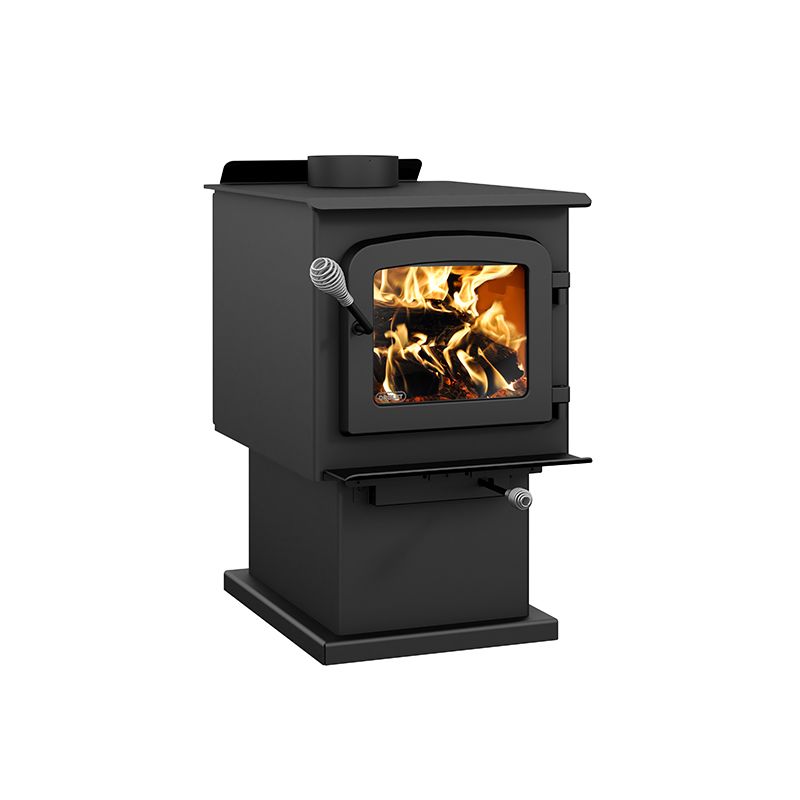

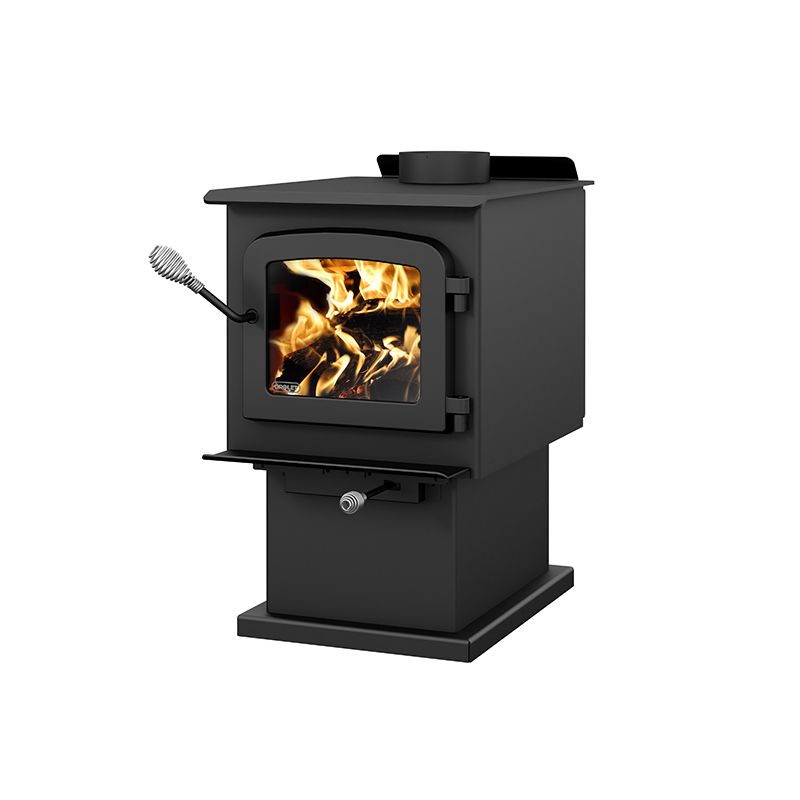

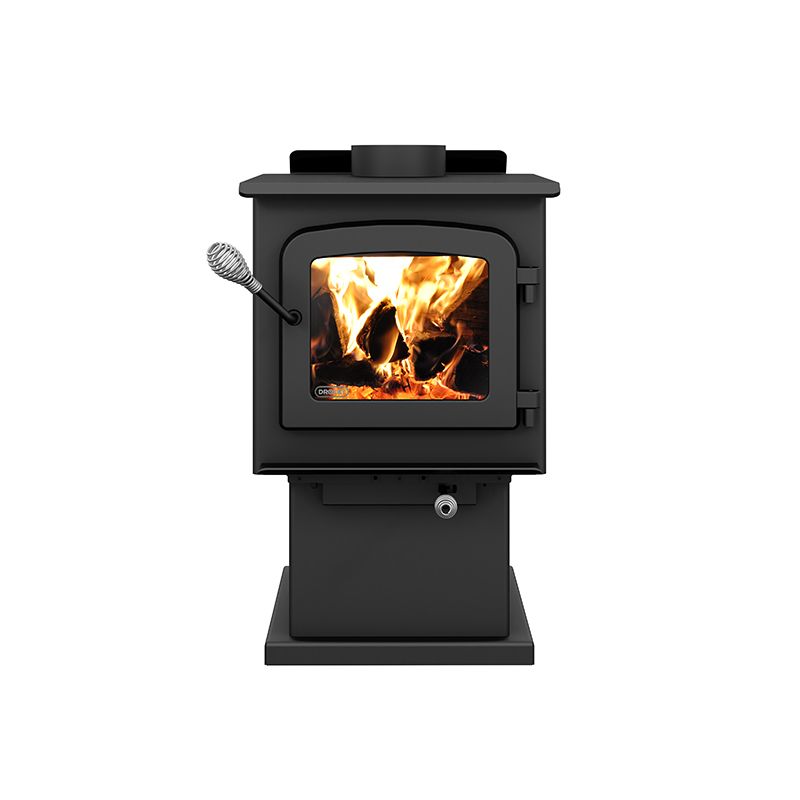

Drolet Escape 1200 Wood Stove DB03182
✓ #1 Authorized Retailer
✓ Fast Shipping: We Usually Ship Within 3 Business Days
✓ Lowest Price Guaranteed
✓ No Sales Tax On Your Order (Excludes CA)
✓ Questions? Contact an Expert (800) 961-6772
Our most compact unit in the series, the Escape 1200 is the perfect choice for heating homes up to 1,200 ft². With only 1.8 g/h of particulate emissions, this EPA certified wood stove puts out an impressive 45,000 BTU/h. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus to be able to empty them much less frequently. A simple model; reliable and robust.
Included: pedestal, air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper
Our most compact unit in the series, the Escape 1200 is the perfect choice for heating homes up to 1,200 ft². With only 1.8 g/h of particulate emissions, this EPA certified wood stove puts out an impressive 45,000 BTU/h. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus to be able to empty them much less frequently. A simple model; reliable and robust.
Included: pedestal, air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper
Fuel type |
Dry cordwood (16" recommended)
|
Recommended heating area (9) | 250 - 1,200 ft² |
Overall firebox volume | 1.7 ft³ |
EPA loading volume | 1.55 ft³ |
Maximum burn time (9) | 5 h |
Maximum heat output-dry cordwood (4) | 45,000 BTU/h (13.19 kW) |
Minimum overall heat output rate (4) (5) | 12,124 BTU/h (3.55 kW) |
Maximum overall heat output rate (4) (5) | 26,700 BTU/h (7.83 kW) |
Average overall efficiency-dry cordwood (HHV) (5) (6) | 74 % |
Average overall efficiency-dry cordwood (LHV) (5) (7) | 79 % |
Optimum efficiency (1) (2) | 80 % |
Optimum heat transfer efficiency (8) | 79 % |
Average particulate emission rate (3) | 1.8 g/h |
Average CO (10) | 74 g/h |
Size | Small |
Alcove installation approved | Yes |
Mobile home approved | Yes, with fresh air intake |
Premium quality blower included (CFM) | Optional |
Certified according to applicable standards |
By an accredited laboratory (CAN/USA)
|
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance-center of the flue outlet to back unit | 6 5/8" |
Distance-center of the flue outlet to side unit | 9 1/4" |
Chimney diameter | 6" |
Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F)
|
Minimum chimney height | 12' |
Overall dimension (Width) | 18 1/2" |
Overall dimension (Depth) | 28 7/8" |
Overall dimension (Height) | 30 1/8" |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 12" |
Door opening size (Height) | 7 5/8" |
Glass type | Ceramic glass |
Firebox size (Width) | 14 1/4" |
Firebox size (Height) | 11 3/4" |
Firebox size (Depth) | 19 1/8" |
Maximum log length | 17" |
Log positioning | Loading over depth |
Firebox lined with refractory bricks | Yes |
Baffle type | High quality vermiculite |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA Standard (safety) | UL 1482, UL 737 |
Steel thickness-body | 3/16" |
Steel thickness-top | 1/4" |
Warranty | Limited lifetime |
Shipping weight | 262 lb (119 kg) |
Country | Canada | United States | ||
Size | Single wall pipe | Double wall pipe | Single wall pipe |
Double wall pipe
|
Clearance - Back wall | 14" | 6" | 12" | 6" |
Clearance - Side wall | 18" | 18" | 18" | 18" |
Clearance - Corner | 11" | 7" | 11" | 7" |
Clearance - Base of the unit to ceiling** | 84" | 84" | 84" | 84" |
The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
