Drolet Escape 1500 Wood Stove DB03135
✓ #1 Authorized Retailer
✓ Fast Shipping: We Usually Ship Within 3 Business Days
✓ Lowest Price Guaranteed
✓ No Sales Tax On Your Order (Excludes CA)
✓ Questions? Contact an Expert (800) 961-6772

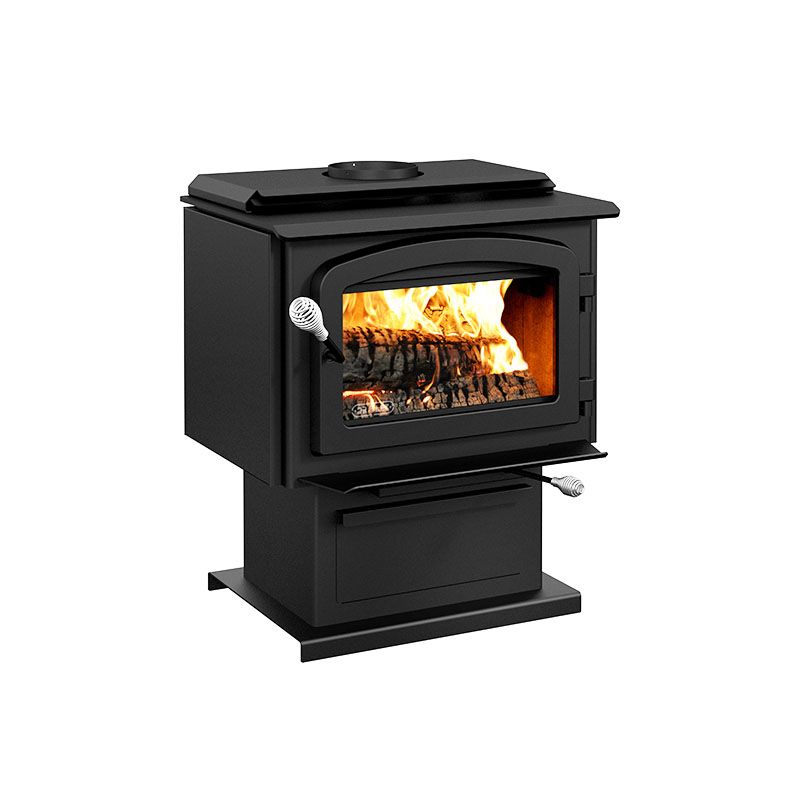

Combining performance and respect for the environment, the Escape 1500 is the perfect choice for heating homes up to 1,800 ft². With only 1.26 g/h of particulate emissions, this non-catalytic wood stove gives off up to 65,000 BTU/h while largely meeting EPA standards. The unit is equipped with side panels which helps reduce clearances to combustible materials and a top heat exchanger which redirects heat to the front of the unit.
Included: pedestal with ash drawer, airmate, ceramic glass, side panels, ash lip, air damper
Maximum burn time (9) | 6 h |
Maximum heat output-dry cordwood (4) | 65,000 BTU/h (19 kW) |
Minimum overall heat output rate (4) (5) | 15,650 BTU/h (4.6 kW) |
Maximum overall heat output rate (4) (5) | 23,300 BTU/h (6.83 kW) |
Average overall efficiency-dry cordwood (HHV) (5) (6) | 70 % |
Average overall efficiency-dry cordwood (LHV) (5) (7) | 75 % |
Optimum efficiency (1) (2) | 78 % |
Optimum heat transfer efficiency (8) | 74 % |
Average particulate emission rate (3) | 1.26 g/h |
Average CO (10) | 58 g/h |
Size | Medium |
Alcove installation approved | Yes |
Mobile home approved | Yes, with fresh air intake |
Premium quality blower included (CFM) | Optional |
Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |
Flue outlet diameter | 6" |
Distance-center of the flue outlet to back unit | 7 1/2" |
Distance-center of the flue outlet to side unit | 12 1/2" |
Chimney diameter | 6" |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height | 12' |
Overall dimension (Width) | 24 7/8" |
Overall dimension (Depth) | 24 1/2" |
Overall dimension (Height) | 29 7/8" |
Door type | Single, glass with cast iron frame |
Door opening size (Width) | 17 1/4" |
Door opening size (Height) | 8" |
Glass type | Ceramic glass |
Glass surface - W x H | 15 3/4" x 9 3/4" |
Firebox size (Width) | 19 5/8" |
Firebox size (Height) | 11 7/8" |
Firebox size (Depth) | 13 1/2" |
Maximum log length | 18" |
Log positioning | Loading over width |
Firebox lined with refractory bricks | Yes |
Baffle type | High quality vermiculite |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA Standard (safety) | UL 1482, UL 737 |
Steel thickness-body | 3/16" |
Steel thickness-top | 5/16" |
Warranty | Limited lifetime |
Shipping weight | 332 lb (151 kg) |
Country | Canada | United States | ||
Size | Single wall pipe | Double wall pipe | Single wall pipe |
Double wall pipe
|
Clearance - Back wall | 14 1/2" | 6" | 13" | 6" |
Clearance - Side wall | 10" | 10" | 10" | 10" |
Clearance - Corner | 12" | 6" | 12" | 6" |
Clearance - Base of the unit to ceiling** | 84" | 84" | 84" | 84" |
The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
