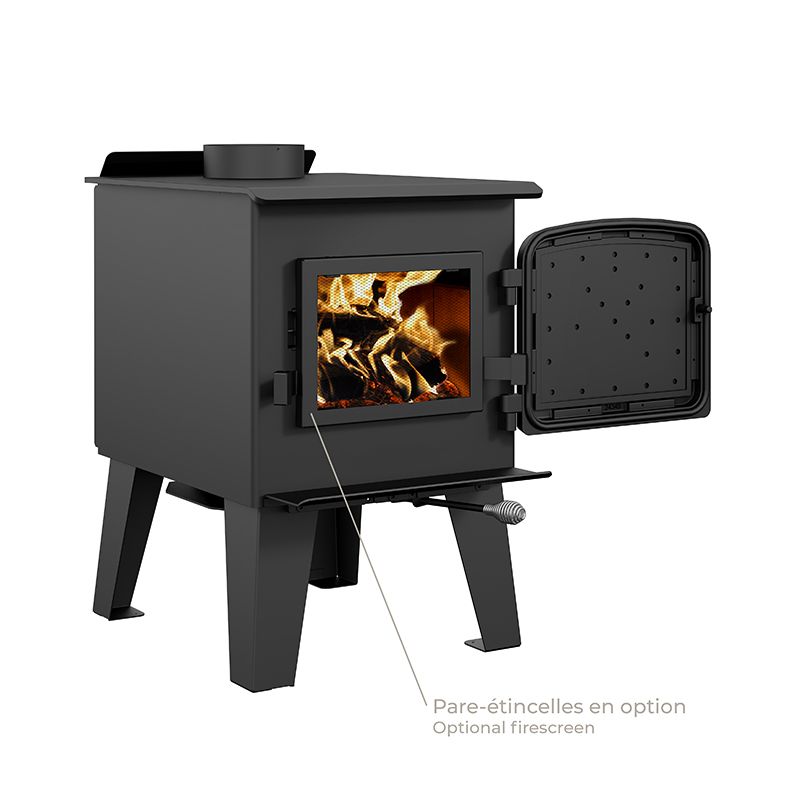

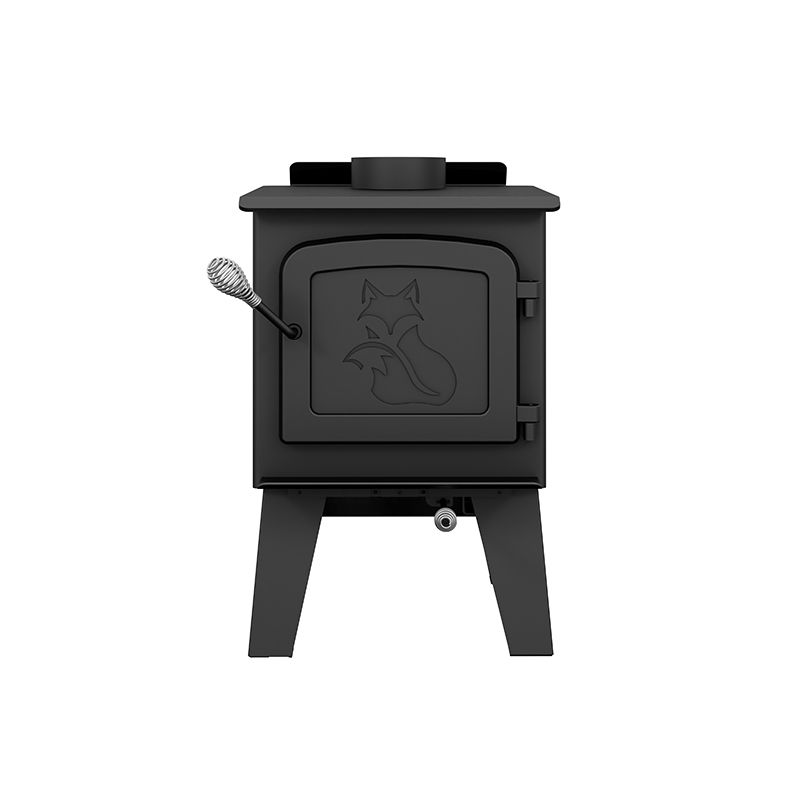

Among the most compact on the market, the Fox wood stove can heat up to 1,200 ft². With a maximum heat output of 45,000 BTU/h. Non-catalytic and EPA certified at an emission rate of 1.8 g/h, this model can efficiently heat small spaces. Its cast iron door, superimposed with steel sheets, is decorated with a fox. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus to be able to empty them much less frequently. Packaged in a rigid cardboard box for ease of transport, this appliance requires simple assembly.
Included: steel legs, air deflector, ceramic glass, cast iron door with adjustable hinges, ash lip, air damper
Fuel type |
Dry cordwood (16" recommended)
|
Recommended heating area (9) | 250 - 1,200 ft² |
Overall firebox volume | 1.7 ft³ |
EPA loading volume | 1.55 ft³ |
Maximum burn time (9) | 5 h |
Maximum heat output-dry cordwood (4) | 45,000 BTU/h (13.19 kW) |
Minimum overall heat output rate (4) (5) | 12,124 BTU/h (3.55 kW) |
Maximum overall heat output rate (4) (5) | 26,700 BTU/h (7.83 kW) |
Average overall efficiency-dry cordwood (HHV) (5) (6) | 74 % |
Average overall efficiency-dry cordwood (LHV) (5) (7) | 79 % |
Optimum efficiency (1) (2) | 80 % |
Optimum heat transfer efficiency (8) | 79 % |
Average particulate emission rate (3) | 1.8 g/h |
Average CO (10) | 74 g/h |
Size | Small |
Alcove installation approved | Yes |
Mobile home approved | Yes, with fresh air intake |
Premium quality blower included (CFM) | Optional |
Certified according to applicable standards |
By an accredited laboratory (CAN/USA)
|
Combustion technology | Non-catalytic |
Stainless-steel secondary-air system | Yes |

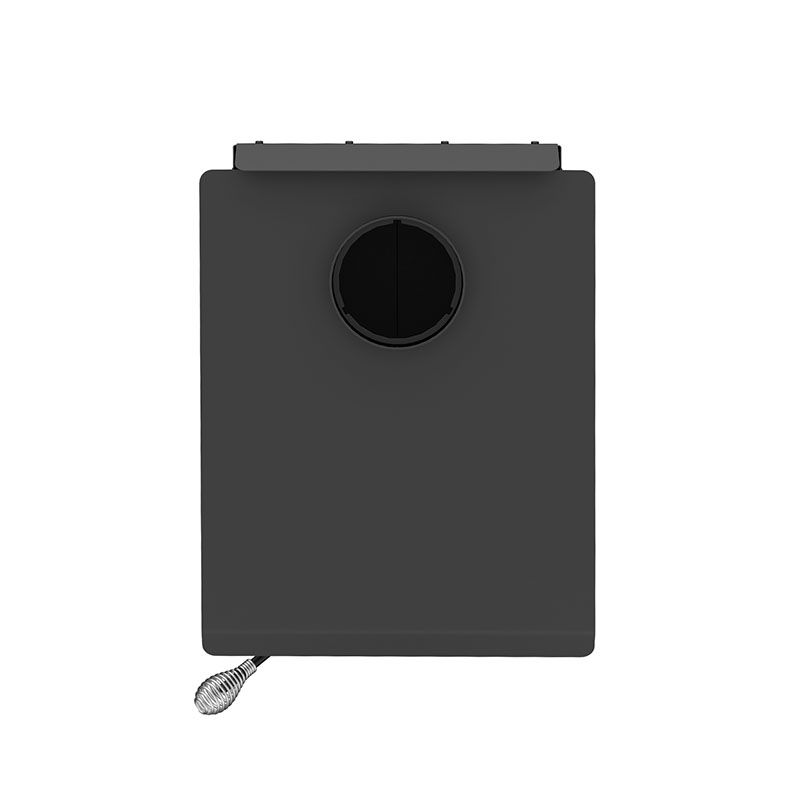

Flue outlet diameter | 6" |
Distance-center of the flue outlet to back unit | 6 5/8" |
Distance-center of the flue outlet to side unit | 9 1/4" |
Chimney diameter | 6" |
Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F)
|
Minimum chimney height | 12' |
Overall dimension (Width) | 18 1/2" |
Overall dimension (Depth) | 28 7/8" |
Overall dimension (Height) | 28 3/4" |
Door type | Cast iron frame with steel inside |
Door opening size (Width) | 12" |
Door opening size (Height) | 7 5/8" |
Firebox size (Width) | 14 1/4" |
Firebox size (Height) | 11 3/4" |
Firebox size (Depth) | 19 1/8" |
Maximum log length | 17" |
Log positioning | Loading over depth |
Firebox lined with refractory bricks | Yes |
Baffle type | High quality vermiculite |
High-efficiency certified appliance | Yes, EPA 2020 approved |
Canadian Standard (emissions) | CSA B415.1-10 |
USA Standard (emissions) | EPA |
Canadian Standard (safety) | ULC S627 |
USA Standard (safety) | UL 1482, UL 737 |
Steel thickness-body | 3/16" |
Steel thickness-top | 1/4" |
Warranty | Limited lifetime |
Shipping weight | 235 lb (107 kg) |
Country | Canada | United States | ||
Size | Single wall pipe | Double wall pipe | Single wall pipe |
Double wall pipe
|
Clearance - Back wall | 14" | 6" | 12" | 6" |
Clearance - Side wall | 18" | 18" | 18" | 18" |
Clearance - Corner | 11" | 7" | 11" | 7" |
Clearance - Base of the unit to ceiling** | 84" | 84" | 84" | 84" |
The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
