Ventis HES350 Extra Large Wood Stove on Pedestal - VB00020

Save up to $400.00 Save $400.00
Original price $3,599.00
Original price $3,599.00 - Original price $3,599.00
Original price $3,599.00
Current price $3,199.00
$3,199.00 - $3,549.00
Current price $3,199.00
SKU VB00020

✓ #1 Authorized Retailer
✓ Fast Shipping: We Usually Ship Within 3 Business Days
✓ Lowest Price Guaranteed
✓ No Sales Tax On Your Order (Excludes CA)
✓ Questions? Contact an Expert (800) 961-6772
Product Description

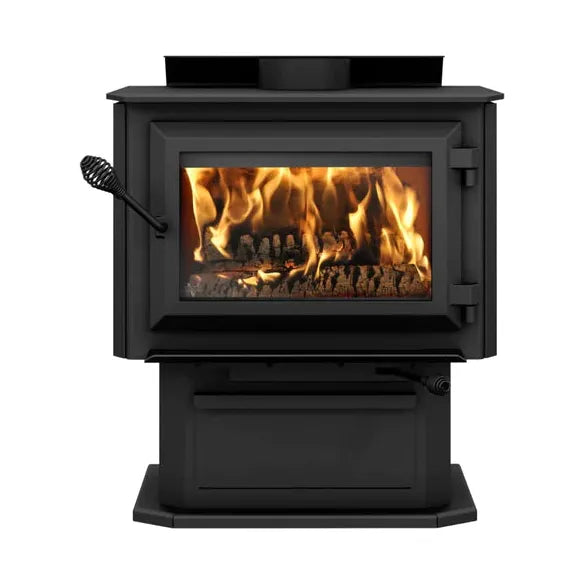

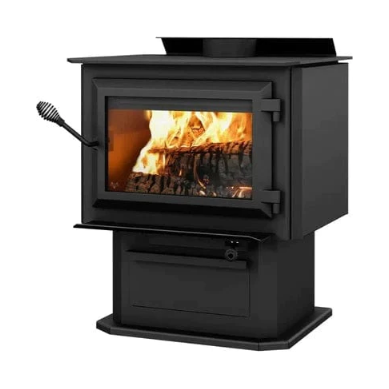

Ventis HES350 Extra Large Wood Stove on Pedestal - VB00020


Product Description

The Ventis HES350 Wood Insert is a 3.5 cu. ft. black freestanding pedestal fireplace with a heating capacity of between 1,000 to 12,700 sq. ft. A perfectly designed solution to heat your home and has a max log length of 22". This unit is 2020 EPA Certified.



Feature

  • 3.5 cu. ft. firebox
  • Heating capacity 1000 to 2,700 sq. ft.
  • Optimum efficiency : 77%
  • Maximum log length: 22''
  • Flue diameter: 6''
  • Metallic black freestanding pedestal model
  • Air-wash system
  • Fire viewing area: 209 sq. inches
  • Variable Speed Blower OPTIONAL (+ $350)
  • Optional variable speed blower available for additional purchase



Appliance Performance

Fuel type

Dry cordwood (16" recommended)

Recommended heating area

1,000 - 2,700 ft²

Overall firebox volume

3.5 ft³

EPA loading volume

2.84 ft³

Maximum burn time

10 hours

Maximum heat output-dry cordwood

110,000 BTU/h

Minimum overall heat output rate

18,100 BTU/h (5.3 kW)

Maximum overall heat output rate

49,500 BTU/h (14.5 kW)

Average efficiency-dry cordwood (HHV)

71 %

Average efficiency-dry cordwood (LHV)

76 %

Optimum efficiency

77 %

Optimum heat transfer efficiency

76 %

Average particulate emission rate

1.32 g/h

Average CO

92 g/h
  • Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
  • Optimum overall efficiency at a specific burn rate (LHV).
  • This appliance is officially tested and certified by an independent agency.
  • The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
  • As measured per CSA B415.1-10 stack loss method.
  • Higher Heating Value of the fuel.
  • Lower Heating Value of the fuel.
  • The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
  • Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
  • Carbon monoxyde.



General Features

Maximum log length

22"

Overall dimension (Width)

28 3/4"

Overall dimension (Height)

34 3/4"

Overall dimension (Depth)

30 5/8"

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Premium quality blower included (CFM)

Optional

Certified according to applicable standards

CAN/USA accredited laboratory

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

6"

Recommended chimney diameter

6"

Type of chimney

CAN/ULC S629, UL 103 HT (2100 °F)

Minimum chimney height

12'

Door type

Single, glass with cast iron frame

Door opening size (Width)

19"

Door opening size (Height)

9 1/4"

Glass type

Ceramic glass

Glass surface - W x H

18 3/8" x 11 1/2"

Firebox size (Width)

22 7/8"

Firebox size (Height)

12 3/4"

Firebox size (Depth)

20 1/8"

Log positioning

Loading over width and over depth

Firebox lined with refractory bricks

Yes

Baffle type

High quality vermiculite

High-efficiency certified appliance

Yes, EPA 2020 certified

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S627

USA Standard (safety)

UL 1482, UL 737

Steel thickness-body

3/16"

Steel thickness-top

5/16"



Product Documents

Product Catalogue
Installation and User’s Manual
Safety & General Information
Fresh Air Kit Installation Instructions
Tax Credit Qualification and Summary
Appliance Dimensions
