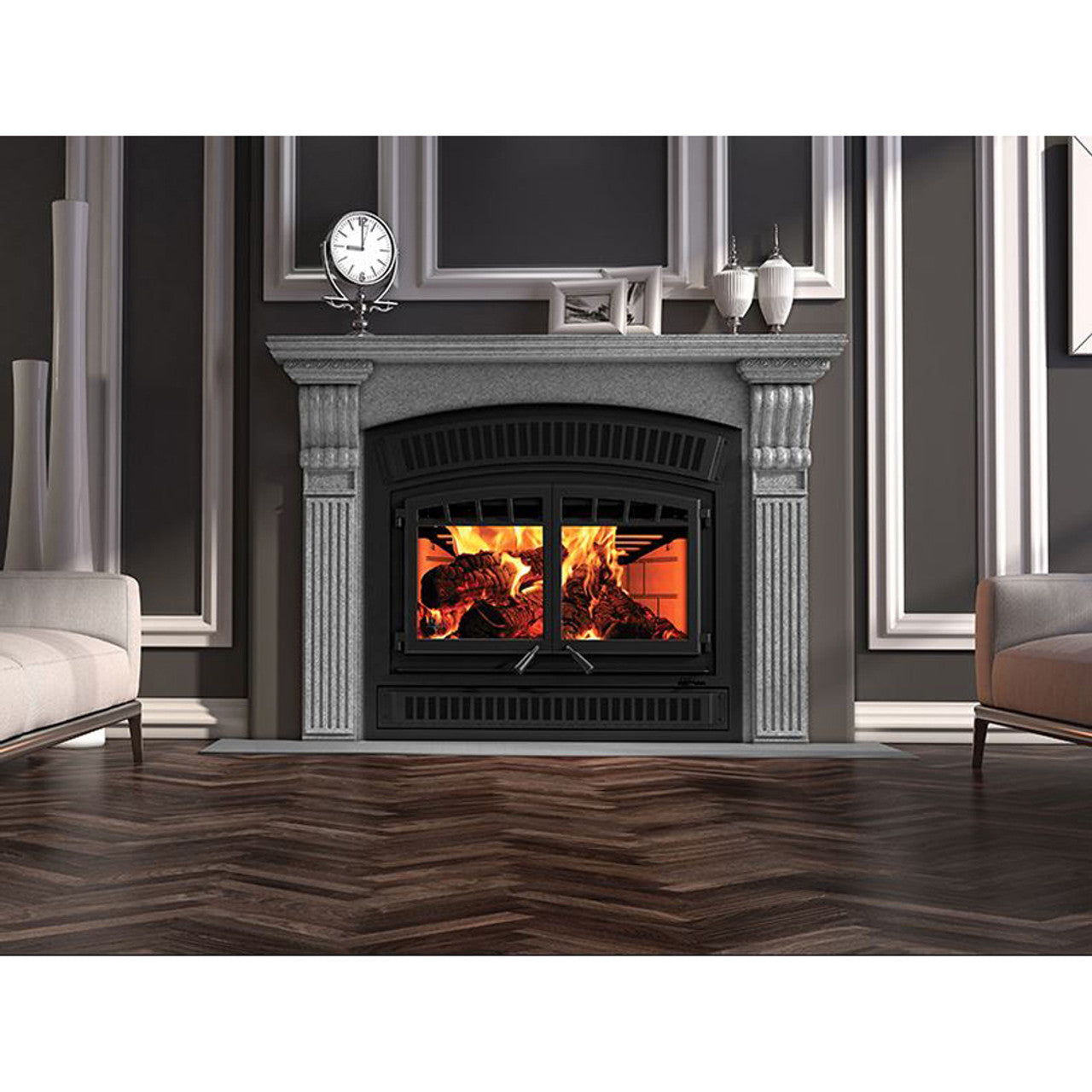

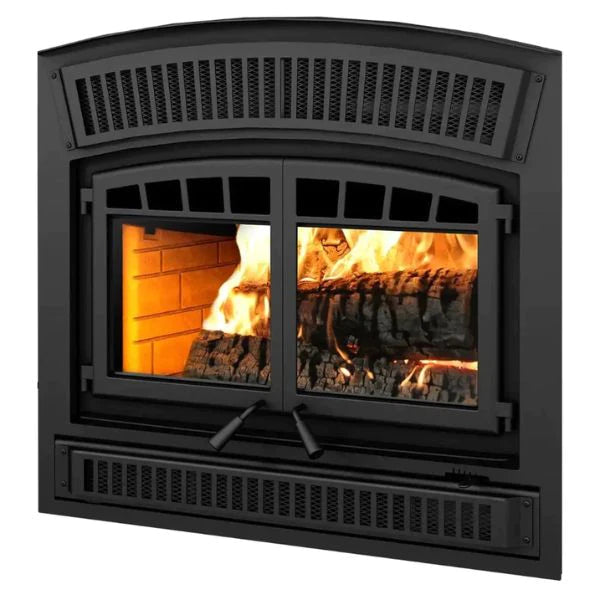

Ventis HE350 ZC Wood Fireplace with Blower, Fireplace Only VB00005

Sale Sale
Original price $5,999.00
Original price $5,999.00 - Original price $6,999.00
Original price $5,999.00
Current price $4,999.00
$4,999.00 - $5,849.00
Current price $4,999.00
SKU VB00005

✓ #1 Authorized Retailer
✓ Fast Shipping: We Usually Ship Within 3 Business Days
✓ Lowest Price Guaranteed
✓ No Sales Tax On Your Order (Excludes CA)
✓ Questions? Contact an Expert (800) 961-6772
Product Description

Ventis HE350 ZC Wood Fireplace with Blower, Fireplace Only VB00005


Product Description

The HE350 features a 4.3 cu. ft. firebox and is ideal for heating a large room. It features non-catalytic technology for a clean burn, and it includes a blower for additional heat. It is recommended for heating larger spaces from 1,000 - 2,800 sq. ft, with a maximum burn time of up to 11 hours and 95,000 BTU/hr maximum. It has an automatic or manual adjustment of combustion air supply, the firebox is lined with molded refractory bricks for better heat distribution, and the unit has a stainless steel secondary-air system, which improves gas combustion. The HE350 is EPA 2020 approved.



Features

  • 4.3 cu. ft. firebox
  • Heating capacity 850 to 2,800 sq. ft.
  • Optimum efficiency: 69.7%
  • Double C-Cast Baffle
  • Non-Catalytic Combustion Technology
  • Emissions: 1.6 g/h
  • BTU/hr, seasoned cord wood: 95,000
  • 4.3 cu. ft. firebox
  • Heating capacity 850 to 2,800 sq. ft.
  • Optimum efficiency: 69.7%
  • Double C-Cast Baffle
  • Non-Catalytic Combustion Technology
  • Emissions: 1.6 g/h
  • BTU/hr, seasoned cord wood: 95,000



Required Option

  • (VBA1540) Traditional faceplate and (AC02360) Classic molded refractory brick panels required to complete this unit. Not Included, Sold Separately.



Appliance Performance

Fuel type

Dry cordwood (16" recommended)

Recommended heating area

1,000 - 2,800 ft²

Overall firebox volume

4.28 ft³

EPA loading volume

4.28 ft³

Maximum burn time

11 Hours

Maximum heat output-dry cordwood

95,000 BTU/h

Minimum overall heat output rate

16,900 BTU/h (5.0 kW)

Maximum overall heat output rate

43,000 BTU/h (12.6 kW)

Average efficiency-dry cordwood (HHV)

64 %

Average efficiency-dry cordwood (LHV)

69 %

Optimum efficiency

70 %

Optimum heat transfer efficiency

69 %

Average particulate emission rate

1.6 g/h

Average CO

159.0 g/h
  • Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
  • Optimum overall efficiency at a specific burn rate (LHV).
  • This appliance is officially tested and certified by an independent agency.
  • The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
  • As measured per CSA B415.1-10 stack loss method.
  • Higher Heating Value of the fuel.
  • Lower Heating Value of the fuel.
  • The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
  • Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
  • Carbon monoxyde.



General Features

Premium quality blower included (CFM)

176 CFM included

Certified according to applicable standards

CAN/USA accredited laboratory

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

8"

Recommended chimney diameter

8"

Type of chimney

CAN/ULC S629, UL 103 HT (2100 °F)

Minimum chimney height

15"

Overall dimension (Width)

45 1/4"

Overall dimension (Height)

43 3/8"

Overall dimension (Depth)

31 3/4"

Door type

Double, glass with cast iron frame

Door opening size (Width)

33"

Door opening size (Height)

12 3/4"

Glass type

Ceramic glass

Glass surface - W x H

29 3/4" x 13 1/2"

Firebox size (Width)

25 3/8"

Firebox size (Height)

25 3/8"

Firebox size (Depth)

17 7/8"

Maximum log length

25"

Log positioning

Loading over width

Baffle type

High density insulation board

High-efficiency certified appliance

Yes, EPA 2020 certified

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA / ASTM WK47329

Canadian Standard (safety)

ULC S610

USA Standard (safety)

UL 127

Shipping weight

555 lb (252 kg)



Product Documents

Product Catalogue
Appliance Dimensions
Installation and Operation Manual
Fresh Air Intake Adapter Installation Instructions
